Device Specifications
Detailed technical specifications and performance metrics to support your decision-making.
Key Technical Specifications
| Device Model | JF-192JF-640JF-768JF-1024JF-1536JF-2560 |
| Dimensions | Microcomputer2000×1390×2100mm Mid-range Machine2850×2200×2400mm Large Machinery3450×3000×3100mm |
| Installed Power | 7.5KW-55KW |
| Capacity | 96-2560 pcs/batch |
| Applicable Workpiece Dimensions | Max 610×610×810mm |
| Polishing accuracy | Ra 0.05-0.8 μm |
| Device Weight | 1200-11000 kg |
| Power Cord Specifications | 6-25 sq mm |
| Power Supply Voltage | 380V/50Hz |
Core Technical Specifications
Polishing precision
Ra 0.05-0.8 μm
Up to 8K mirror finish
Processing Efficiency
96-2560 pcs/batch
Diameter up to 600 mm, length up to 800 mm workpiece
Compatible Materials
Stainless Steel / Aluminum Alloy / Zinc Alloy / Copper / Iron / Titanium Alloy / Magnesium Alloy, etc.
Processes a wide range of metal materials
Motor Power
7.5KW-55KW
Different models and motor power ratings

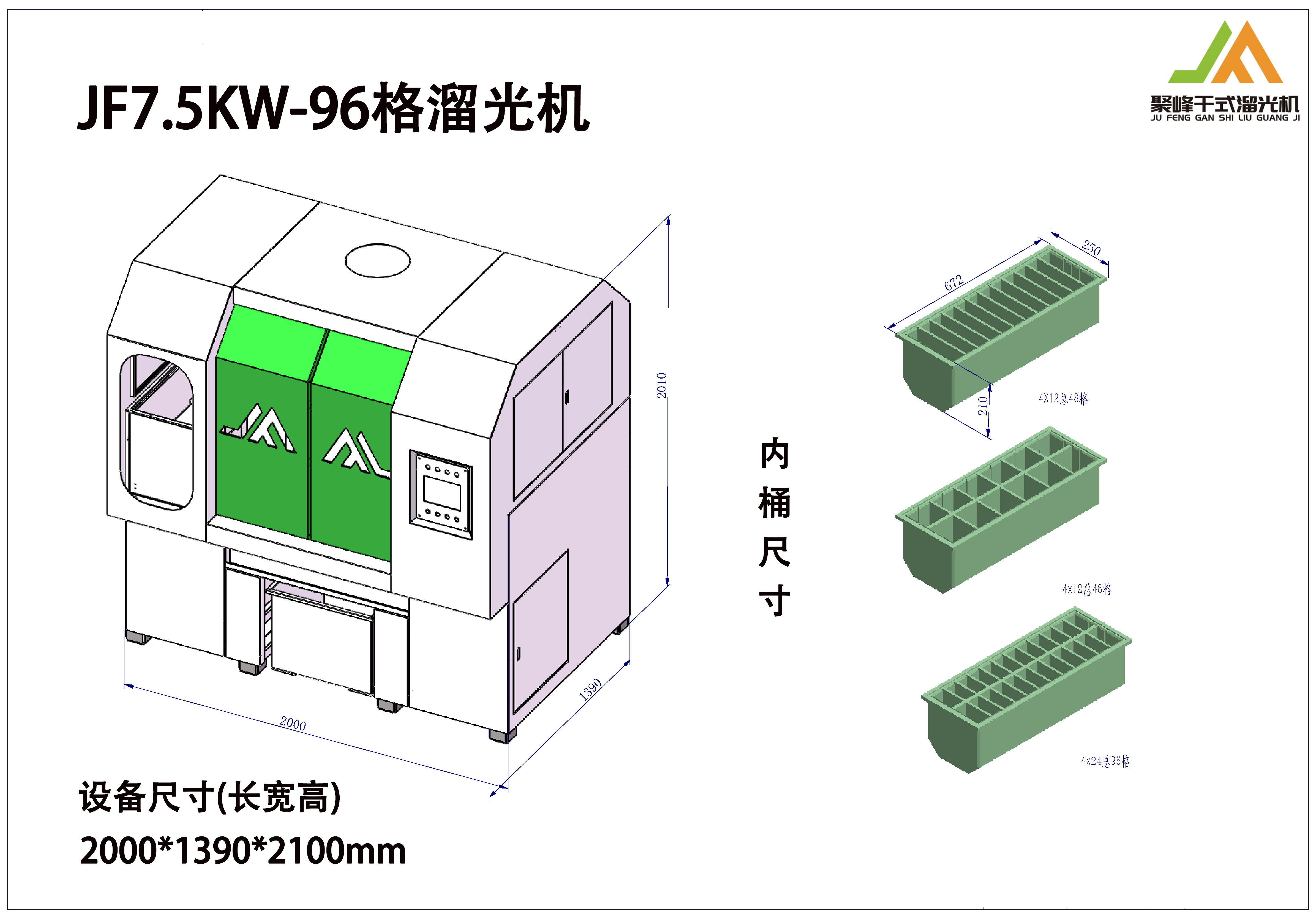

Jufeng Dry Mirror Polishing Machine
JF 7.5KW-96 Belt Sander
@jufengzhb.cn
Device Dimensions (L x W x H)
2000*1390*2100mm
Inner Drum Dimensions
8 × 12 Total 96 Cells
672*250*210mm
8×24, 192 total cells
620*200*120mm

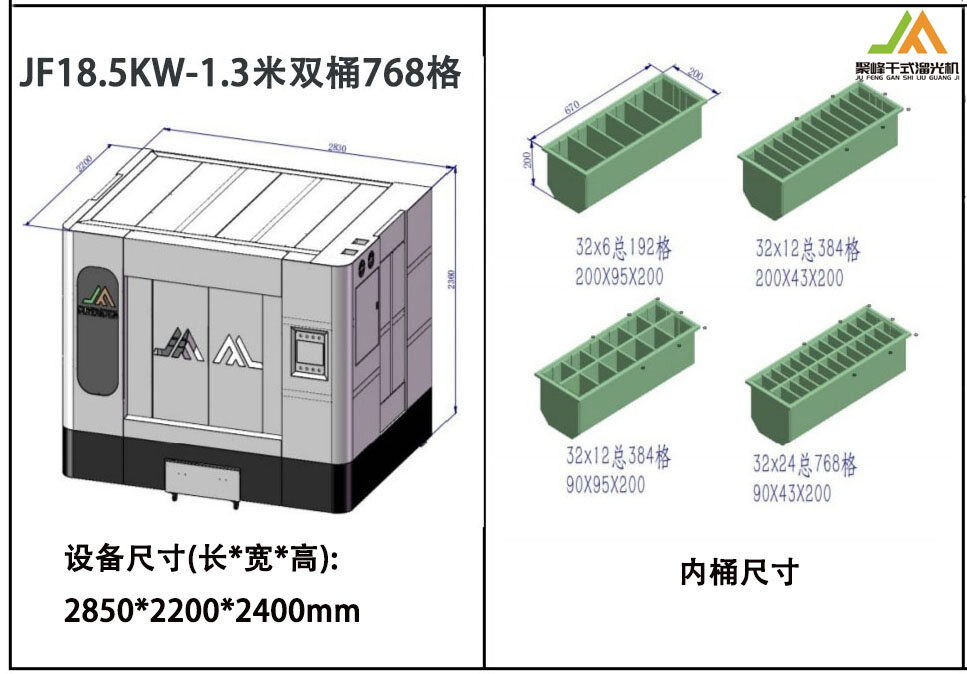

Mid-size Machine
JF18.5KW-1.3 m Dual-Tub 768-Compartment
@jufengzhb.cn
Device Dimensions (L x W x H)
2850*2200*2400mm
Inner Drum Dimensions
32 × 6 Total 192 Cells
200×95×200
32 × 12 Total 384 Cells
200×43×200
32 × 12 Total 384 Cells
90×95×200
32 × 24 Total 768 Cells
90×43×200

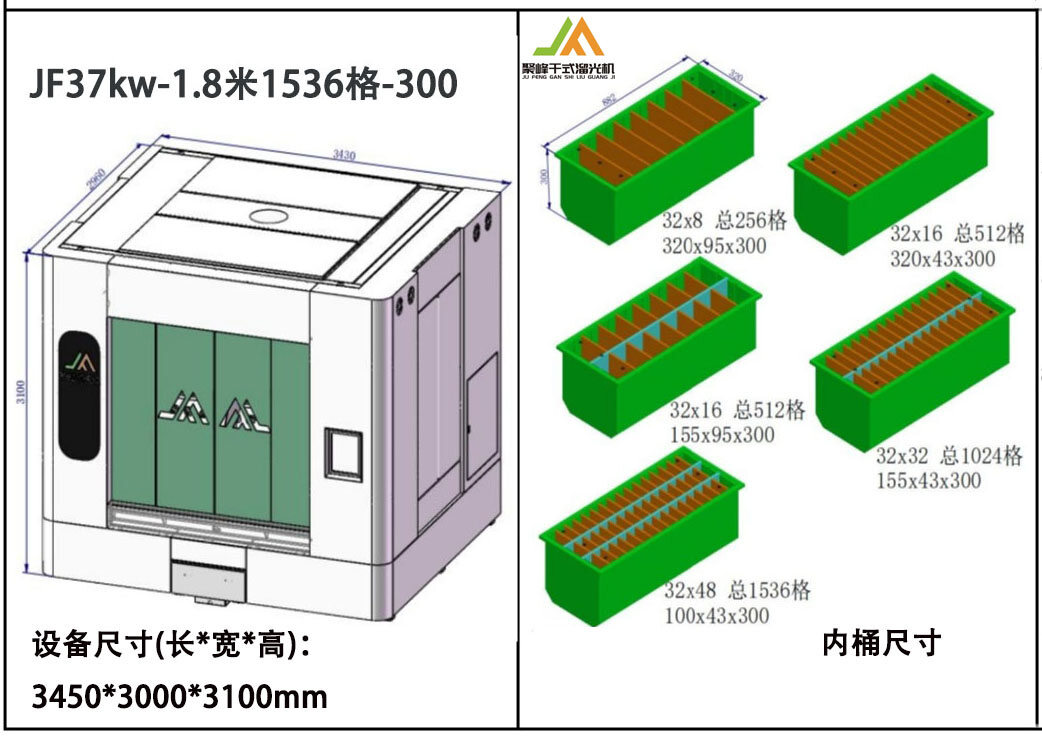

Large Machinery
JF37kw-1.8 ft 1536 cells -300
@jufengzhb.cn
Device Dimensions (L x W x H)
3450*3000*3100mm
Inner Drum Dimensions
32 × 8 Total 256 Cells
320×95×300
32 × 16 Total 512 Cells
320×43×300
32 × 16 Total 512 Cells
155×95×300
32 × 32 Total 1024 Cells
155×43×300
32 × 48 Total 1536 Cells
100×43×300

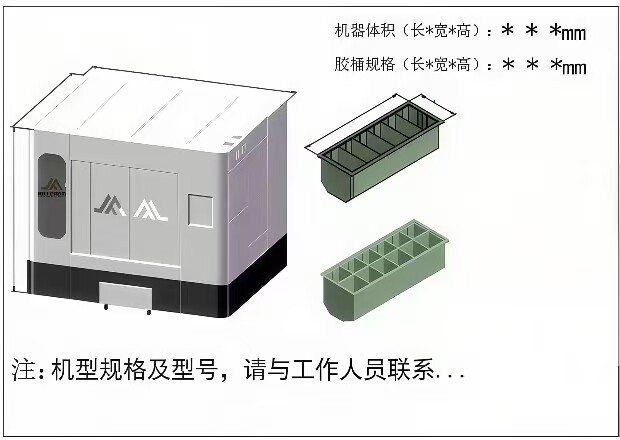

Custom Machine
Custom Model
@jufengzhb.cn
Note: Contact staff for more device models!
Applicable Workpiece Types
Precision Castings
CNC Lathe Parts
Stretched stamping parts
Powder Metallurgy
3D-printed parts
Die-cast parts
Get Detailed Technical Proposal
We provide customized technical solutions and quotes based on your specific artifacts and requirements.
Get in Touch
